STR CASTERS™

  • Fine and Convenient Height Adjustments - Our casters are designed with a variety of adjustment features to allow for easy & quick maintenance to promote optimal equipment performance.
  • Reliable and Consistent Performance - Our patented PolyBlock™ polyurethane dampener provides less height and performance deterioration over time than traditional metal springs.
  • Protected in All Environments - Rust-Proof Zinc plated parts, sealed bearings and swivel assemblies, and greasable components provide ample corrosion resistance.
  • Immediate Availability - With a full line of inventory and overnight shipping option on most models.
  • Heavy Duty Construction - With 0.25" - 0.375" thick steel side plates, minimum welds to reduce weak spots, and forged housings.
  • Greater Cornering Stability and Comfort - Patented PolyBlock™ damper technology reduces oscillation and rocking effect.
  • Longer Wheel Work-Life - Using a larger wheel (4" O.D.) to increase usage life
  • Custom Designs Available - Work with our Technical Service Engineers to design a caster specifically for your application or equipment.



Download the STR Caster™ Specification Guide

                                  Got Questions?

                             1.800.289.1456 x300

Superior Tire & Rubber Corp. specializes in heavy-duty industrial truck casters and customized caster solutions for every challenging application. We have revolutionized the industry by introducing a patented STR Stabilizer caster that utilizes a compressive style “PolyBlock™” in electric pallet jack casters polyurethane spring design. This technology provides multiple advantages over traditional steel spring and torsional polyurethane designs.  Using higher reliability, no steel creeping effect, and higher damping resulting in less rocking and more excellent cornering stability and improved adjustability, maintaining the best performance. Our casters have been exclusively selected by OEM truck design engineers to outfit the best electric pallet trucks.



Superior Tire & Rubber Corp is the vendor of choice for significant truck manufacturers and heavy equipment manufacturers to customize caster designs to their requirements and specifications. We have a catalog of casters that fit most electric pallet jacks and meet all specifications for CL-II reach truck designs. We also specialize in ultra-heavy caster applications with in-house design and manufacturing capabilities. Our extensive testing capabilities ensure both durability and environmental soundness. Our technical staff is conversant in all ASTM, ISO, and AIAG standards and methodologies, allowing us to validate and provide the best caster designs.

Stabilizing Caster™ Models:

See "Download the Casters Specification Guide Literature" above for all Makes/Models & OEM Numbers

STR1000 Series Caster™

Engineered for walk-behind pallets trucks carrying 4,000-5,000lb loads. Designed with a full size swivel mechanism for added strength and longer wear-life. Features a PolyBlock™ dampener for consistent performance throughout the life of the caster.

  • Full Size Swivel - using cup and cone with thrust bearing instead of single row ball bearing ensures high durability and longer wear-life.
  • Fine & Convenient Height Adjustments - Extra-fine adjustments eliminating the use of spacers and shims.
  • Durable Duty Steel Construction - 0.25' steel plates with no welds to reduce weak points.
  • Greater Cornering Stability & Comfort - Patented PolyBlock damper technology reduces oscillation and rocking effect.
  • Immediate Availability - Designed and manufactured in-house, we stock and service all assemblies and replacement parts.
  • Reliable & Consistent Performance - Less height and performance deterioration over time than metal springs.

Standard Features

  • Rust Proof Zinc Plating
  • Greasable Wheel Axle
  • Available for: STR1500, STR1638

Extreme Food Service

  • In addition to stanard feaures:
  • Greasable Pilot Axle
  • Available for STR1500 Caster Models
  • String Guard comes standard.
  • Linear Deflection with a positive stop after 1”.
  • Interchangeable kit replacements available for all models.
  • Optional maintenance - free, sealed Bearings.
  • Optional Wheel compounds: Cushothane® XL™.

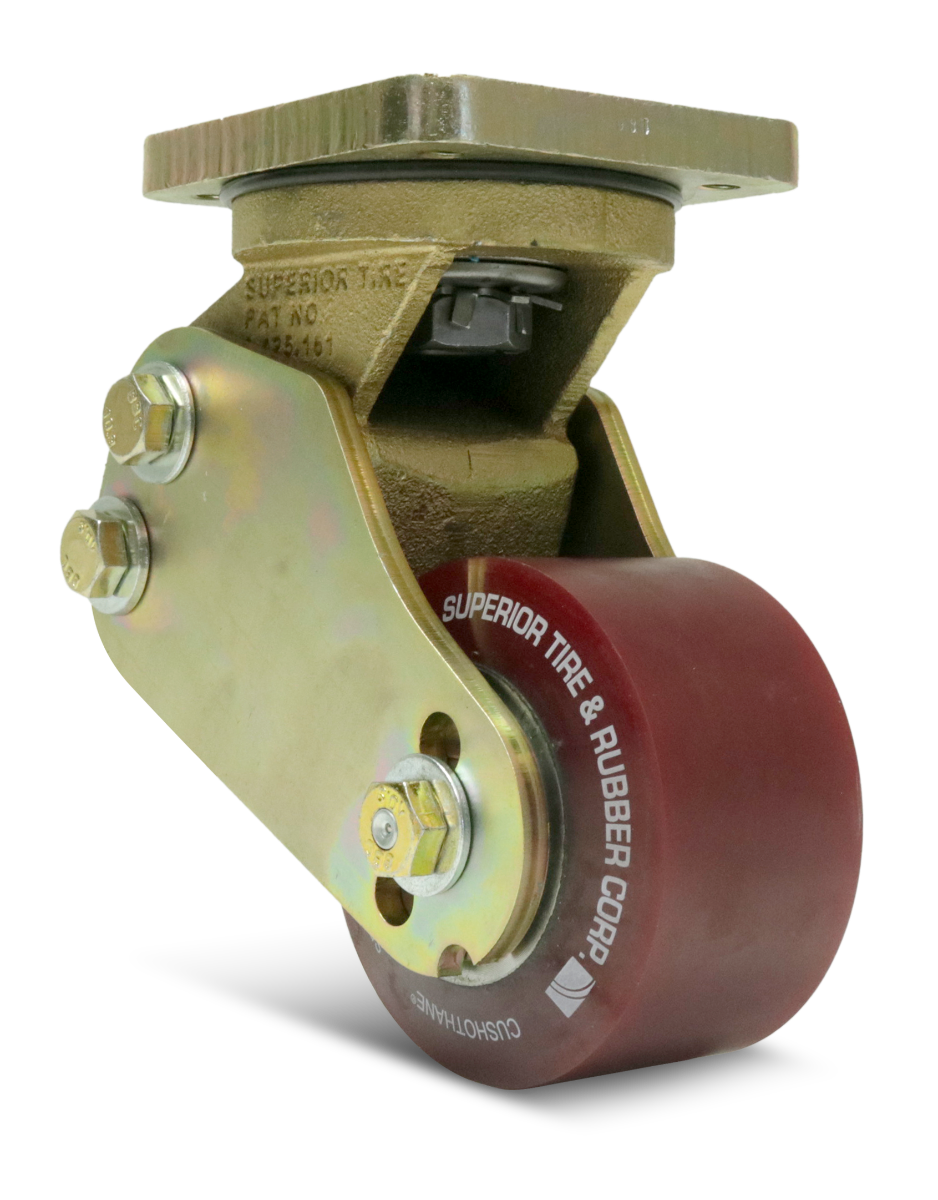

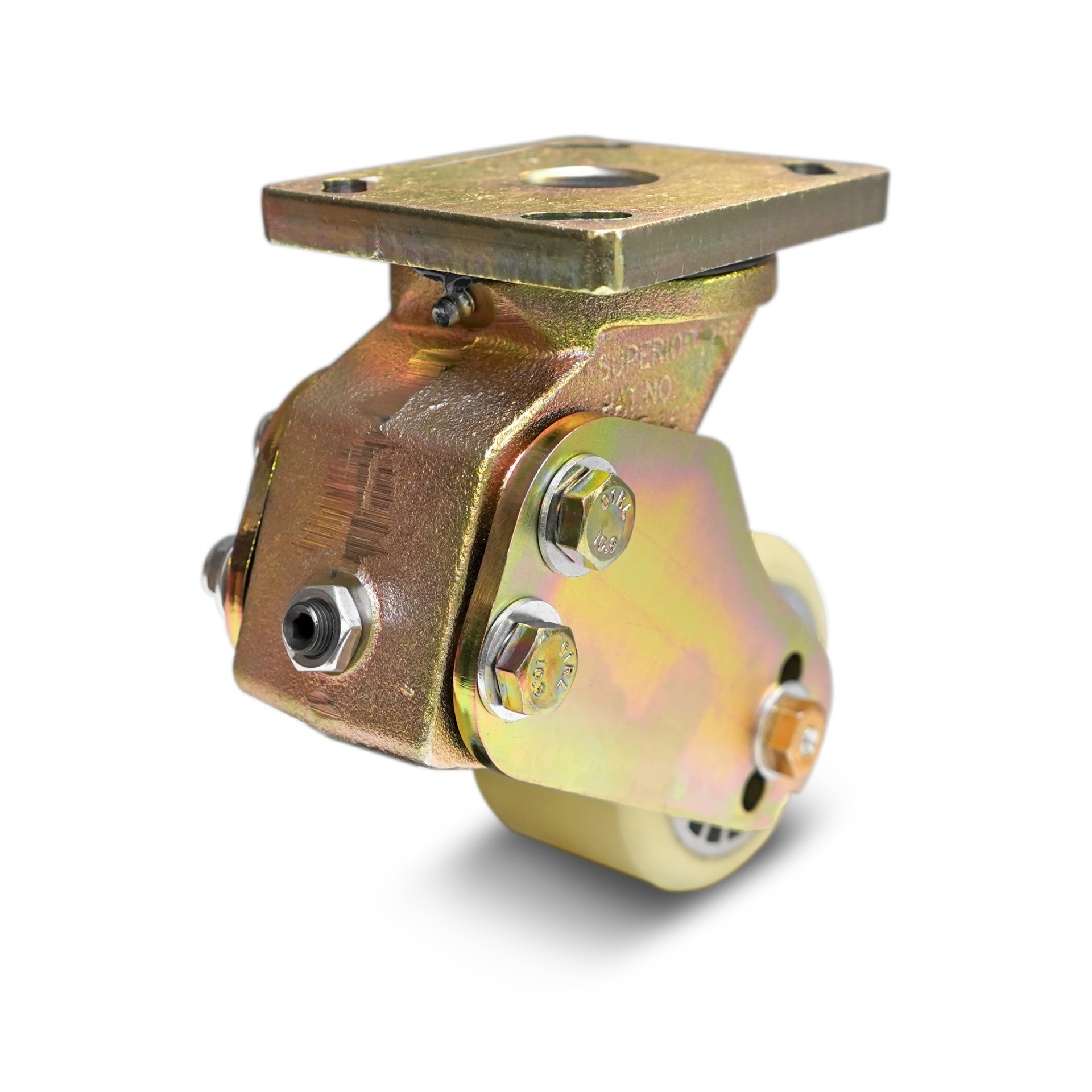

STR2000 Series Caster™

Engineered as a drop-in replacement for all OEMs, the STR Stabilizer Caster™ - with patented PolyBlock™ technology - eliminates the use of unreliable metal springs yet provides greater stability in cornering, a smoother ride and higher productivity.

  • Durable Steel Construction - 0.25" steel plates with no welds to reduce weak points.
  • Fine & Convenient Height Adjustments - Easy three-position coarse & extra-fine adjustments eliminating the use of spacers and shims.
  • Longer Wheel Work-Life and Protected in All Environments - By using a larger wheel (4" O.D.) with the toughest polyurethane compound available with Rush-Proof Zinc plated parts and a greasable wheel or axle for corrosive environments.
  • Greater Cornering Stability & Comfort - Patented PolyBlock™ damper technology reduces oscillation and rocking effect.
  • Immediate Avilability - Designed and manufactured in-house, we stock and service all assemblies and replacement parts.
  • Reliable and Consistent Performance - Less height and performance deterioration over time than metal springs.

Standard Features

  • Rust Proof Zinc Plating
  • Greasable Wheel Axle
  • Available for: STR2000, STR2000BL, STR2000CR2, STR2000HY, STR2000JH, STR2000RA, and STR2000TY

Extreme Food Service

  • In addition to stanard feaures:
  • Greasable Pilot Axle
  • Available for STR2000HY, STR2000JH, and STR2000TY Caster Models
  • String Guard comes standard.
  • Linear Deflection with a positive stop after 1.5" inches.
  • Interchangeable kit replacements available for all models.
  • Optional maintenance - free, sealed Wheel Bearings.
  • Optional Wheel compounds: Cushothane® XL™.

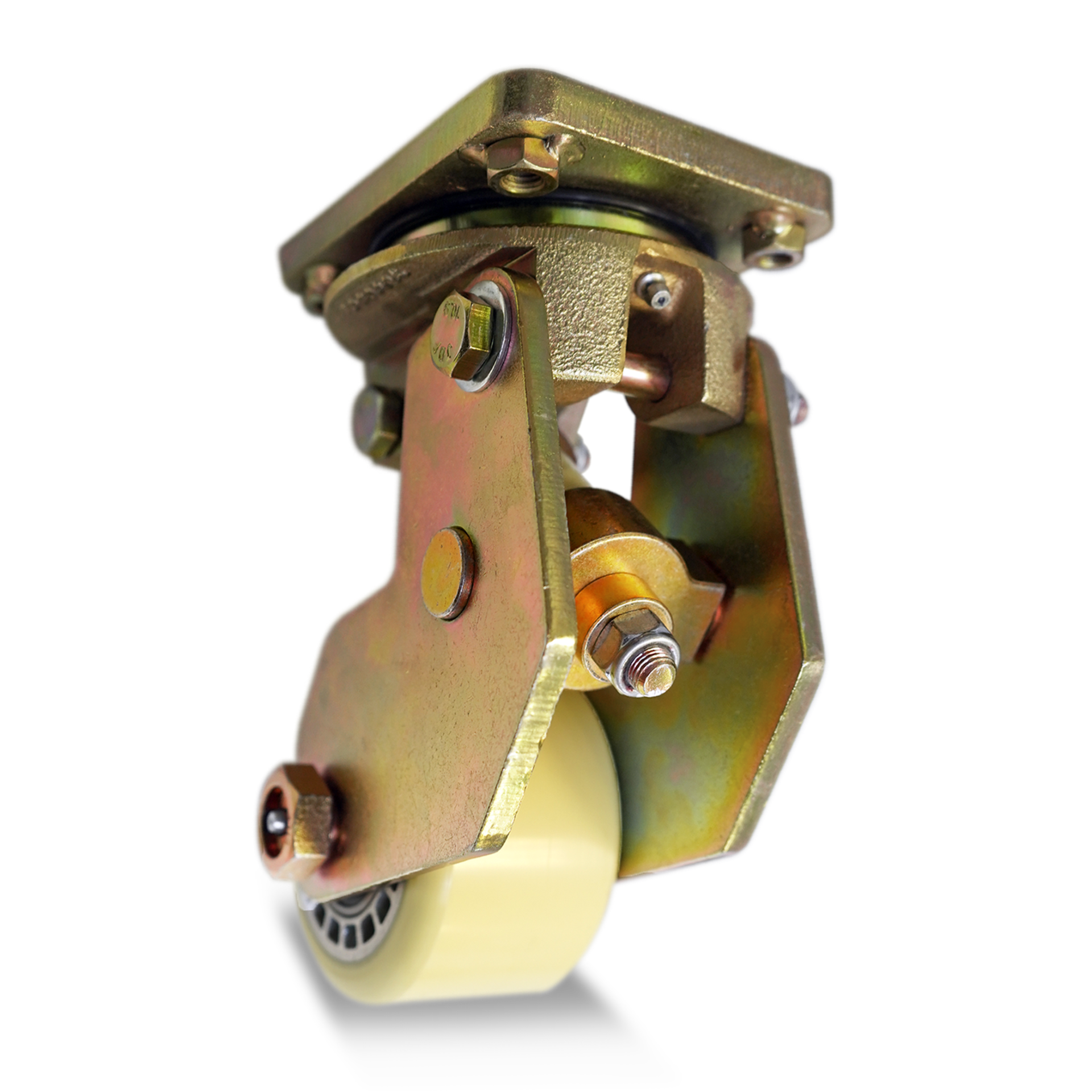

STR5200 Series Caster™

Designed to be quickly and easily adjustable from the side of the truck, without ever having to lift the truck. Solid casting with no welds and thicker 5/16” side plates for added strength and longevity. Also features patented PolyBlock™ dampener technology.

  • Heavy Duty Steel Construction - Solid casting without welds and heavy duty 5/16' side plates.
  • The Easiest/Fastest Height Adjustable Caster Available - Achieve the perfect height isong a typical wrench without our linear fine thread adjusting mechanism - without lifting the truck.
  • Longer Wheel Work-Life and Protected in All Environments - By using a larger wheel (4" O.D.) with the toughest polyurethane compound available with Rust-Proof Zinc plated parts and a greasable wheel or axle for corrosive environments.
  • Greater Cornering Stability & Comfort - Patented PolyBlock™damper technology reduces oscillation adn rocking effect.
  • Immediate Availability - Designed and manufactured in-house, we stock and service all assemblies and replacement parts.
  • Reliable & Consistent Performance - Less height and performance deterioration over time than metal strings.

Standard Features

  • Rust Proof Zinc Plating
  • Greasable Wheel Axle
  • Available for: STR5213, STR5253. STR5263, STR5200B
    • String Guard comes standard.
    • Linear Deflection with a positive stop after 2 inches.
    • Interchangeable kit replacements available for all models.
    • Optional maintenance - free, sealed Wheel Bearings.
    • Optional Wheel compounds: Cushothane® XL™.

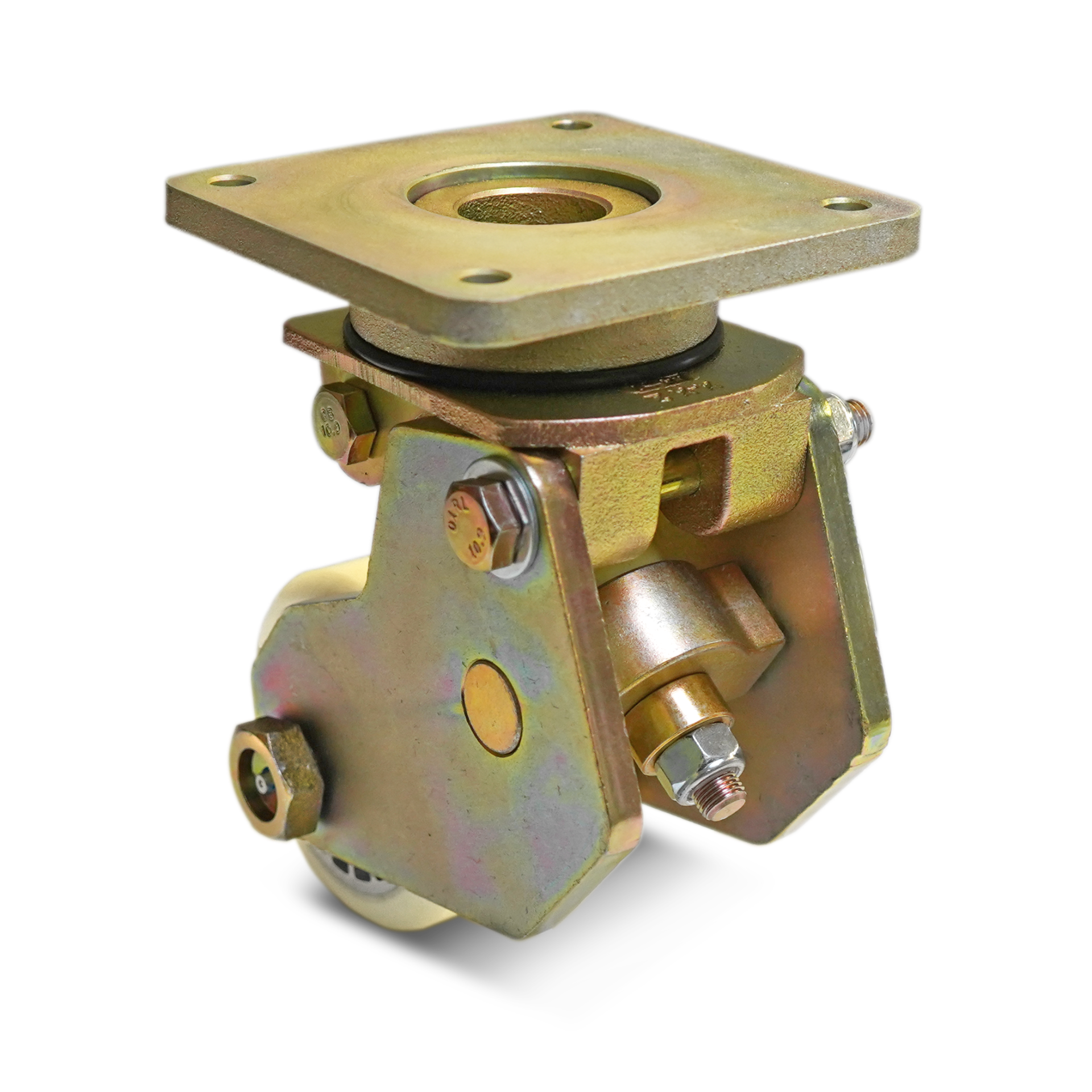

    STR5400 Series Caster™

    Designed as a heavier duty quick and easy adjustable from the side of the truck caster. Kingpin-less heavy duty machined & hardened cast housing with no welds and heavy duty 3/8” side plates for added strength and longevity. Features patented PolyBlock™ dampener technology.

    • Heavy Duty Steel Construction - Hardened machined cast upper & lower housing with no welds and heavy duty 3/8" side plates.
    • The Easiest/Fastest Height Adjustable Caster Available - Achieve the perfect height using a typical wrench with our linear fine thread adjusting mechanism - without lifting the truck.
    • Longer Wheel Work-Life and Protected in All Envionments - By using a larger wheel (4" O.D.) with the toughest polyurethane compound available with Rust-Proof Zinc plated parts and a greasable wheel or axle for corrosive environments.
    • Greater Cornering Stability & Comfort - Patented PolyBlockdamper technnology reduces oscillation and rocking effect.
    • Immediate Availability - Designed and manufactured in-house, we stock and service all assemblies and replacement parts.
    • Reliable and Consistent Performance - Less height and performance deterioration over time than metal springs.

    Standard Features

    • Rust Proof Zinc Plating
    • Greasable Wheel Axle
    • Available for: STR5453, STR5473
      • String Guard comes standard.
      • Linear Deflection with a positive stop after 2" inches.
      • Interchangeable kit replacements available for all models.
      • Optional maintenance - free, sealed Wheel Bearings.
      • Optional Wheel compounds: Cushothane® XL™.

      Rigid Caster™ Models:

      See "Download the Casters Specification Guide Literature" above for all Makes/Models & OEM Numbers

      STR4100 Series Caster™

      Designed primarily as a robust rigid caster for heavy duty material handling carts, trucks and rigging equipment, the STR4100 Series excels where others fail. With a solid steel cast housing, no fasteners to break, and hardened steel bearing race, it’s aisles ahead of the competition.

      • Heavy Duty Steel Construction - Solid casting without welds and heavy duty kingpin-less swivel mechanism.
      • Convenient Greasability - Greasing moving parts is critical to prolonging work-life. With conveniently located grease fittings, basic maintenance is even easier.
      • Longer Wheel Work-Life from a Large Load Wheel - by using a large 6” OD wheel with the toughest polyurethane compounds available, and a 3” wide cross section provides extreme durability and optimal load capacity.
      • Consistently Smooth Swivel - specially designed with a hardened steel bearing race uses rubber O-rings to lock out moisture & debris, and lock in grease.
      • Sealed Bearings & String Guards - preventing debris from binding up the load wheels while maintaining internal lubrication.
      • Zero Fasteners - factory assembled with no fasteners to eliminate the burden of nut & bolt weaknesses.
      • Rust Proof Zinc Plating
      • Greasable Wheel Axle
      • 8” Standard Height
      • Available for: STR4163, STR4164
      • String Guard comes standard.
      • Optional maintenance - free, sealed Wheel Bearings.
      • Optional Wheel compounds: Cushothane® XL™.

      Primary OEM and Part #

      Weight | Superior Item #

      Crown® - 133109-001

      6,000lb | STR52000CR2



      Primary OEM and Part #

      Weight | Superior Item #

      HYG® - 2079240

      6,000lb | STR02000HY



      Primary OEM and Part #

      Weight | Superior Item #

      Raymond® - 1082408/100

      6,000lb | STR02000RA

      Superior Select - Rigid Casters:

      Ships Same or Next Business Day!

      Primary OEM and Part #

      Weight | Superior Item #

      Crown® - 310260

      -,--- lb |STR4163



      Primary OEM and Part #

      Weight | Superior Item #

      Raymond® - 2832879

      -,--- lb |STR4163

      Primary OEM and Part #

      Weight | Superior Item #

      UniCarriers® - 43380-FS400

      -,--- lb | STR4163

      UniCarriers® - 43380-FS401

      -,--- lb | STR4163

      Rigid Wheel Assembly Option:

      • Designed to reduce coning & skidding effect in cornering.
      • Longer wear-life and highermaneuverability.
      • Heavy load capacity and dutycycle.
      • Matched wheel O.D. at lessthan 0.005” run-out.
      • Reduces chance of flat-spottingfrom wheel locking by debris .

      STR Stabilizer Caster™ Kit Selection Diagram:

      Complete Bolt Kit

      Included Parts

      Quantity

      Bolt

      2

      Greasable Axle

      1

      Washers

      6

      Nylock Nut

      3

      Adj. Set Screw

      1

      Adj. Jam Nut

      1

      Bolt

      2

      Wheel Kit

      Included Parts

      Quantity

      Load Wheel

      1

      Axle Bushing

      1

      Bearings

      2

      Washers

      2

      String Guards

      2

      Housing Kit

      Included Parts

      Quantity

      Mount Plate

      1

      King pin, washer, nut

      1

      Upper Olite Bearings

      1

      Caster Housing & Zerk

      1

      Adj. Set Screw

      1

      Adj. Jam Nut

      1

      Lower Timken Cup & Cone Bearing parts

      1

      NOTE:This model is based off of the STR2000 Stabilizer Caster. Patented design & components. US Patent #6,425,161 B1 for the industrial caster wheel & PolyBlock™ shock absorbing mechanism, & US Patent #7,093,319 B2 for the adjustment member of the caster.

      NOTE: STR1431, STR1436, STR1460, STR5470 Kits are proprietary; contact your OEM for details

      *Adjustment Set Screw and  Jam Nut are included in the Complete Bolt Kit and the Housing Kit.

      STR Caster™ Dimensions:

      Stabilizing Caster™ Models:

      Model STR1500

      Assemblies Height (in) – 5.5

      Turning Radius (in) – 3.3125

      Cantered or Offset Swivel – Offset

      Load Wheel Size (in) – 3.25 x 1.57

      Base Plate Size (in) – 3.15 x 4.587

      Slots or Holes – Threaded Holes

      Model STR1638

      Assemblies Height (in) – 5.5

      Turning Radius (in) – 3.3125

      Cantered or Offset Swivel – Centered

      Load Wheel Size (in) – 3.25 x 2

      Base Plate Size (in) – 3.25 x 3.25

      Slots or Holes– Holes

      Model STR2000

      Assemblies Height (in) – 7.5

      Turning Radius (in) – 4.1875

      Cantered or Offset Swivel – Centered

      Load Wheel Size (in) – 4 x 2.5

      Base Plate Size (in) – 4 x 4.75

      Slots or Holes  – Slots

      Model STR2000BL

      Assemblies Height (in) – 7.5

      Turning Radius (in) – 3.875

      Cantered or Offset Swivel – Centered

      Load Wheel Size (in) – 4 x 2.5

      Base Plate Size (in) – 3 x 4.75

      Slots or Holes  – Holes

      Model STR2000CR2

      Assemblies Height (in) –7.5

      Turning Radius (in) –4.1875

      Cantered or Offset Swivel –Centered

      Load Wheel Size (in) –4 x 2.5

      Base Plate Size (in) – 5 x 5

      Slots or Holes  –2 Sets of Holes

      Model STR2000HY

      Assemblies Height (in) – 7.5

      Turning Radius (in) – 4.1875

      Cantered or Offset Swivel – Centered

      Load Wheel Size (in) – 4 x 2.5

      Base Plate Size (in) – 4 x 4.5

      Slots or Holes  – Thread Holes

      Model STR2000JH

      Assemblies Height (in) – 7.875

      Turning Radius (in) – 3.625

      Cantered or Offset Swivel – Offset

      Load Wheel Size (in) – 4 x 2.5

      Base Plate Size (in) – 4.25 x 5.5

      Slots or Holes  – Thread Holes

      Model STR2000RA

      Assemblies Height (in) – 7.5

      Turning Radius (in) – 4.1875

      Cantered or Offset Swivel – Offset

      Load Wheel Size (in) – 4 x 2.5

      Base Plate Size (in) – 5 x 6

      Slots or Holes  – Holes

      Model STR2000TY

      Assemblies Height (in) – 7.5

      Turning Radius (in) – 4.1875

      Cantered or Offset Swivel – Centered

      Load Wheel Size (in) – 4 x 2.5

      Base Plate Size (in) – 4 x 5.75

      Slots or Holes  – Holes

      Model STR2100

      Assemblies Height (in) – 8.375

      Turning Radius (in) – 4.1875

      Cantered or Offset Swivel – Centered

      Load Wheel Size (in) – 4 x 2.5

      Base Plate Size (in) – 4 x 4.5

      Slots or Holes  – Threaded Holes

      Model STR3000

      Assemblies Height (in) – 9.125

      Turning Radius (in) – 4.1875

      Cantered or Offset Swivel – Centered

      Load Wheel Size (in) – 4 x 2.5

      Base Plate Size (in) – 5 x 7

      Slots or Holes  – Slots

      Model STR3002

      Assemblies Height (in) – 9.125

      Turning Radius (in) – 4.1875

      Cantered or Offset Swivel – Centered

      Load Wheel Size (in) – 5 x 2.5

      Base Plate Size (in) – 5 x 7

      Slots or Holes  – Slots

      Model STR5213

      Assemblies Height (in) – 8.07

      Turning Radius (in) – 4.125

      Cantered or Offset Swivel – Centered

      Load Wheel Size (in) – 4 x 2.5

      Base Plate Size (in) – 4 x 4.5

      Slots or Holes  – Holes

      Model STR5253

      Assemblies Height (in) – 7.75

      Turning Radius (in) – 4.5

      Cantered or Offset Swivel – Centered

      Load Wheel Size (in) – 4 x 2.5

      Base Plate Size (in) – 5 x 5

      Slots or Holes  – 2 Sets of Holes

      Model STR5263

      Assemblies Height (in) – 8.85

      Turning Radius (in) – 4.442

      Cantered or Offset Swivel – Centered

      Load Wheel Size (in) – 4 x 2.5

      Base Plate Size (in) – 5 x 7

      Slots or Holes  – Holes

      Model STR5453

      Assemblies Height (in) – 7.51

      Turning Radius (in) – 4.125

      Cantered or Offset Swivel – Centered

      Load Wheel Size (in) – 4 x 2.5

      Base Plate Size (in) – 5.25 x 5.25

      Slots or Holes  – 2 Sets of  Holes

      Model STR5473

      Assemblies Height (in) – 8.189

      Turning Radius (in) – 3.793

      Cantered or Offset Swivel – Centered

      Load Wheel Size (in) – 4 x 2.5

      Base Plate Size (in) – 5.25 x 5.25

      Slots or Holes  – Holes

      Rigid Caster™ Models:

      Model STR4163

      Assemblies Height (in) – 8

      Turning Radius (in) – 4.684

      Cantered or Offset Swivel – Centered

      Load Wheel Size (in) – 6 x 3

      Base Plate Size (in) – 4.5 x 6.25

      Slots or Holes – Holes

      No Reviews Yet

      View as Grid List

      Items 1-12 of 38

      Page
      per page
      Set Descending Direction
      View as Grid List

      Items 1-12 of 38

      Page
      per page
      Set Descending Direction
