HIGH CAPACITY MATERIAL HANDLING

Application Specific Compounds - Cushothane® EZ™, Cushothane® XL™ and Cushothane® XL-AC™

High Capacity Guidelines - designs and materials engineered to optimize the dimensional capacity

Explosion Proof - UL Certified Static Conductive rubber made specifically for explosion-proof equipment.

Engineering Excellence - from theory to application, our experienced engineering team provides value-added project assistance

Standardization of Raw Material - a large catalog of standard designs using standard raw materials offering the most cost effective solution

Custom Solutions Available - with proprietariness in mind, customer designs are available

Overview:

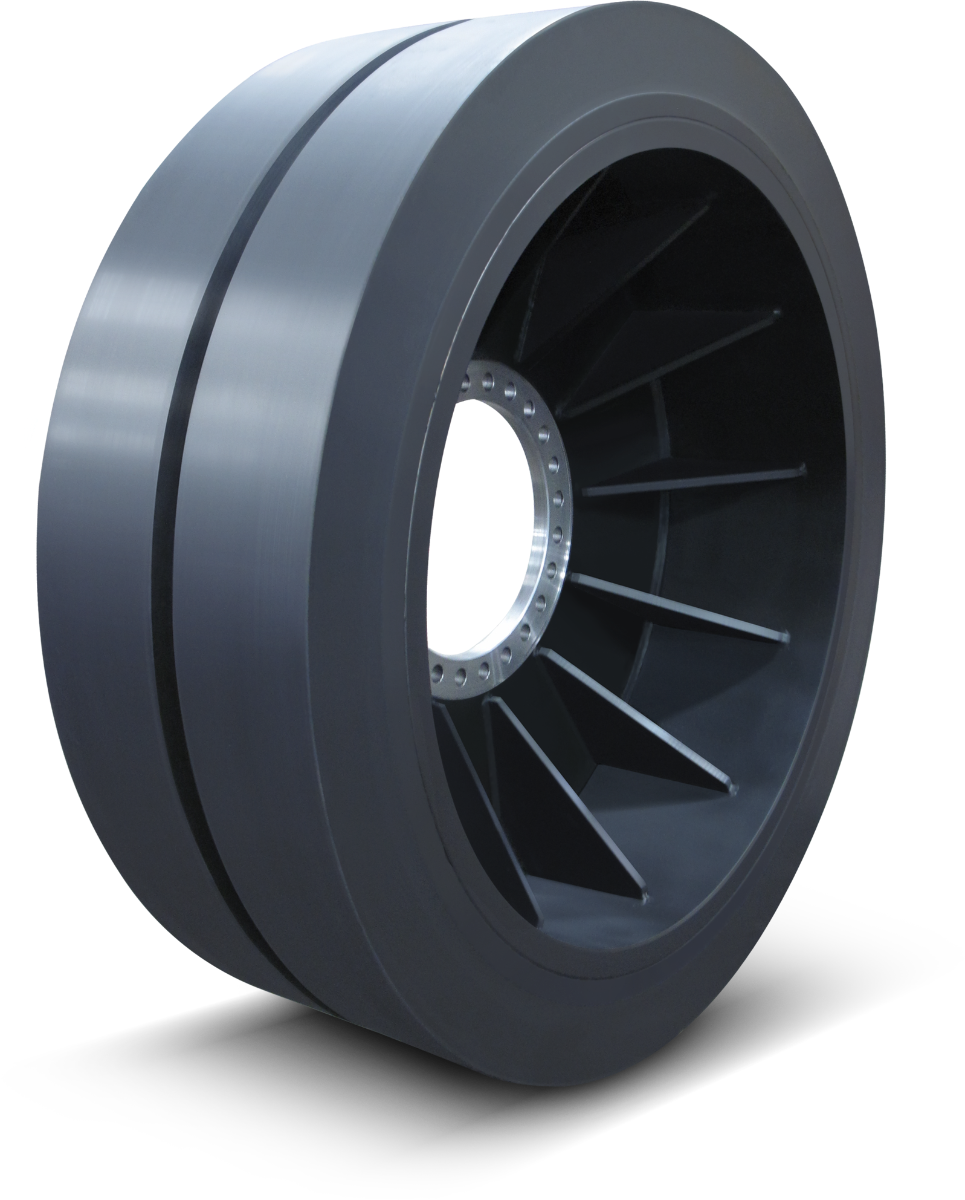

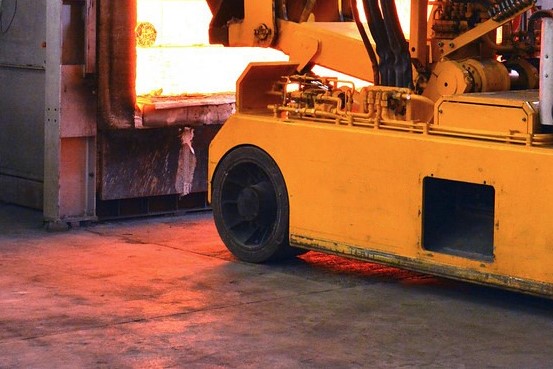

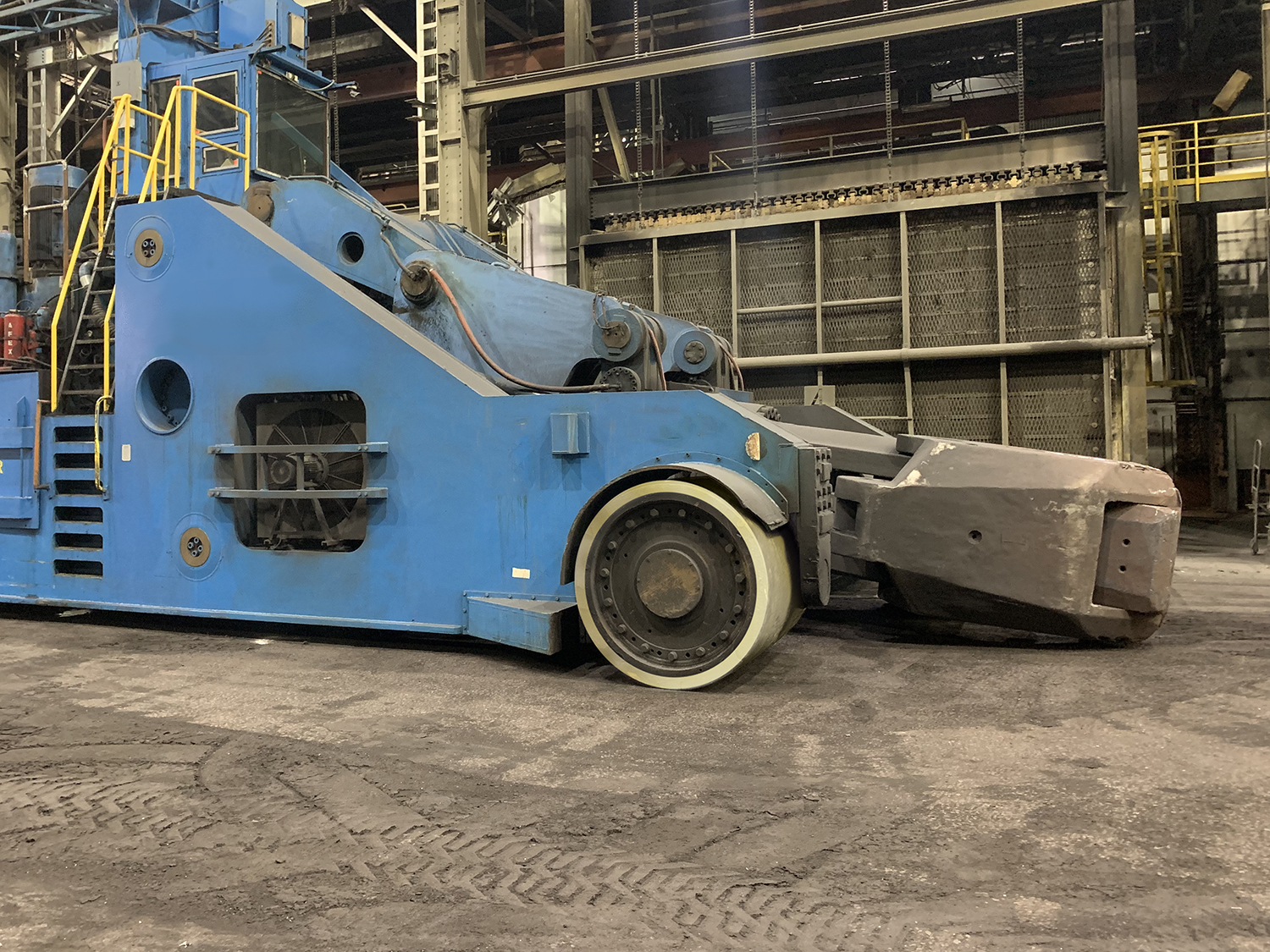

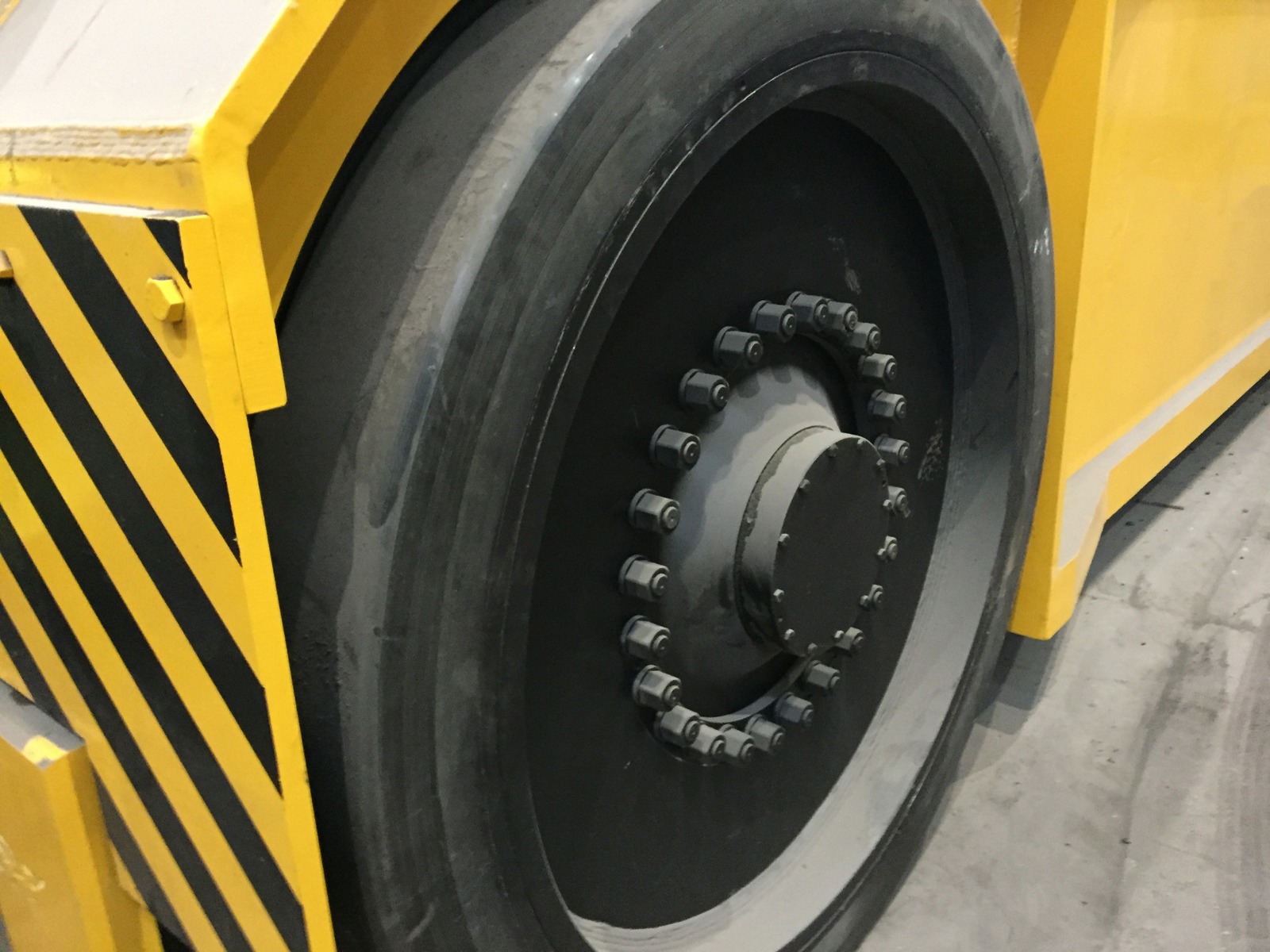

Superior Tire and Rubber Corp. offers high capacity large OD and ultra large OD wheels in most alternative and standard sizes in the most popular compounds offered; Cushothane® EZ™, Cushothane® XL™ and Cushothane® XL-AC™

There is also no limit on OD, though Class 4 and 5 are preferred, which allows for the option of custom solutions. Superior Tire and Rubber Corp. provides access to a large engineering team to make sure your design can fit and meet tight tolerances, high traction needs, high capacity, and on.

Counter Balance Fork Lift

  • Cushothane® EZ - Universal compound with excellent cut & tear.  Ideal for front drive tires in a counterbalance unit
  • Cushothane® XL - Heavy load compound designed for high abrasion applications like the rear steer of a ounterbalance unit
  • Cushothane® XL-AC - Highest dynamic compound engineered to handle the highest duty applicaitons

Class and Capacity Guidelines

Ideal Uses - Loading/unloading tractor-trailer's; handling pallets

Benefits - Electrical means no emissions, minimal noise

Ideal Uses – Operating in tight spaces, handling pallets, picking/storing inventory

Benefits – Can be used to gain more storage space in same warehouse footprint

Ideal Uses – unloading deliveries from tractor-trailers; short runs in smaller areas

Benefits – Rider and walk behind (“walkie”) options

Ideal Uses – Moving Pallets from the loading dock to storage, vice versa

Benefits – Cushion tires great for low-clearance situations

Ideal Uses – Versatile; trucks in this class can handle single pallets to loaded 40- foot containers

Benefits – Mostly for outdoor use, but also indoors in large warehouses

Ideal Uses – Commonly used for the hauling of pulling loads rather than lifting, vice versa

Benefits – Example; Airport “tugger” towing luggage carts

Ideal Uses – Great for lumberyards/construction sites where crews need to lift building materials to high elevations

Benefits – Some are equipped with telescoping mast to provide far greater reach

Based on the Tire and Rim Association Standard

Max Load Ratings

22x8x16

Rubber – 7,740

Cushothane® EZ™ Black – 12,696

Cushothane® XL™ Black or Yellow – 13,966

Cushothane® XL-AC™ No Dye  - 14,600

22x9x16

Rubber – 8,777

Cushothane® EZ™ Black – 14,628

Cushothane® XL™ Black or Yellow – 16,091

Cushothane® XL-AC™ No Dye  -16,822

22x10x16

Rubber – 9,925

Cushothane® EZ™ Black – 16,560

Cushothane® XL™ Black or Yellow – 18,216

Cushothane® XL-AC™ No Dye – 19,044

22x12x16

Rubber – 12,121

Cushothane® EZ™ Black – 20,424

Cushothane® XL™ Black or Yellow – 22,466

Cushothane® XL-AC™ No Dye  – 23,488

22x14x16

Rubber – 14,318

Cushothane® EZ™ Black – 24,277

Cushothane® XL™ Black or Yellow – 26,704

Cushothane® XL-AC™ No Dye – 27,918

22x16x16

Rubber – 16,503

Cushothane® EZ™ Black – 28,141

Cushothane® XL™ Black or Yellow – 30,955

Cushothane® XL-AC™ No Dye  - 32,362

28x10x22

Rubber – 12,892

Cushothane® EZ™ Black – 19,838

Cushothane® XL™ Black or Yellow – 21,821

Cushothane® XL-AC™ No Dye  – 22,813

28x12x22

Rubber – 15,893

Cushothane® EZ™ Black – 24,472

Cushothane® XL™ Black or Yellow – 26,919

Cushothane® XL-AC™ No Dye – 28,143

28x14x22

Rubber – 17,457

Cushothane® EZ™ Black – 29,095

Cushothane® XL™ Black or Yellow – 32,005

Cushothane® XL-AC™ No Dye  – 33,459

28x16x22

Rubber – 21,896

Cushothane® EZ™ Black – 33,718

Cushothane® XL™ Black or Yellow – 37,090

Cushothane® XL-AC™ No Dye  – 38,776

36x10x30

Rubber – N/A

Cushothane® EZ™ Black – 23,966

Cushothane® XL™ Black or Yellow – 26,363

Cushothane® XL-AC™ No Dye  – 27,561

36x12x30

Rubber – N/A

Cushothane® EZ™ Black – 29,544

Cushothane® XL™ Black or Yellow – 32,498

Cushothane® XL-AC™ No Dye  – 33,975

36x14x30

Rubber – N/A

Cushothane® EZ™ Black – 35,133

Cushothane® XL™ Black or Yellow – 38,646

Cushothane® XL-AC™ No Dye  –40,402

36x16x30

Rubber – N/A

Cushothane® EZ™ Black – 40,710

Cushothane® XL™ Black or Yellow – 44,781

Cushothane® XL-AC™ No Dye – 46,817

Max Load Ratings

22x8x16

Rubber – 6,730

601 – EZ Black – 11,040

508 XL Black or Yellow – 12,144

901 – XLAC No Dye  - 12,696

22x9x16

Rubber – 7,632

601 – EZ Black – 12,720

508 XL Black or Yellow – 13,992

901 – XLAC No Dye  –  14,628

22x10x16

Rubber – 8,630

601 – EZ Black – 14,400

508 XL Black or Yellow – 15,840

901 – XLAC No Dye  – 16,560

22x12x16

Rubber – 10,540

601 – EZ Black – 17,760

508 XL Black or Yellow – 19,536

901 – XLAC No Dye  –20,424

22x14x16

Rubber – 12,450

601 – EZ Black – 21,110

508 XL Black or Yellow – 23,221

901 – XLAC No Dye – 24,277

22x16x16

Rubber – 14,350

601 – EZ Black – 24,470

508 XL Black or Yellow – 26,917

901 – XLAC No Dye  – 28,141

28x10x22

Rubber – 11,210

601 – EZ Black – 17,250

508 XL Black or Yellow – 18,975

901 – XLAC No Dye – 19,838

28x12x22

Rubber – 13,820

601 – EZ Black – 21,280

508 XL Black or Yellow – 23,408

901 – XLAC No Dye  – 24,472

28x14x22

Rubber – 15,180

601 – EZ Black – 25,300

508 XL Black or Yellow – 27,830

901 – XLAC No Dye  - 29,095

28x16x22

Rubber – 19,040

601 – EZ Black – 29,320

508 XL Black or Yellow – 32,252

901 – XLAC No Dye  – 33,718

36x10x30

Rubber – N/A

601 – EZ Black – 20,840

508 XL Black or Yellow – 22,924

901 – XLAC No Dye  –23,966

36x12x30

Rubber – N/A

601 – EZ Black – 25,690

508 XL Black or Yellow – 28,259

901 – XLAC No Dye  – 29,544

36x14x30

Rubber – N/A

601 – EZ Black – 30,550

508 XL Black or Yellow – 33,605

901 – XLAC No Dye  – 35,133

36x16x30

Rubber – N/A

601 – EZ Black – 35,400

508 XL Black or Yellow – 38,940

901 – XLAC No Dye  – 40,710

Max Load Ratings

22x8x16

Rubber – 5,852

601 – EZ Black – 9,600

508 XL Black or Yellow – 10,560

901 – XLAC No Dye  – 11,040

22x9x16

Rubber – 6,637

601 – EZ Black – 11,061

508 XL Black or Yellow – 12,167

901 – XLAC No Dye  – 12,720

22x10x16

Rubber – 7,504

601 – EZ Black – 12,522

508 XL Black or Yellow – 13,774

901 – XLAC No Dye  – 14,400

22x12x16

Rubber – 9,165

601 – EZ Black – 15,443

508 XL Black or Yellow – 16,988

901 – XLAC No Dye  – 17,760

22x14x16

Rubber – 10,826

601 – EZ Black – 18,357

508 XL Black or Yellow – 20,192

901 – XLAC No Dye  – 21,110

22x16x16

Rubber – 12,478

601 – EZ Black – 21,278

508 XL Black or Yellow – 23,406

901 – XLAC No Dye  – 24,470

28x10x22

Rubber – 9,748

601 – EZ Black – 15,000

508 XL Black or Yellow – 16,500

901 – XLAC No Dye  – 17,250

28x12x22

Rubber – 12,017

601 – EZ Black – 18,504

508 XL Black or Yellow – 20,355

901 – XLAC No Dye  – 21,280

28x14x22

Rubber – 13,200

601 – EZ Black – 22,000

508 XL Black or Yellow – 24,200

901 – XLAC No Dye  –25,300

28x16x22

Rubber – 16,557

601 – EZ Black – 25,496

508 XL Black or Yellow – 28,045

901 – XLAC No Dye  – 29,320

36x10x30

Rubber – N/A

601 – EZ Black – 18,122

508 XL Black or Yellow – 19,934

901 – XLAC No Dye  – 20,840

36x12x30

Rubber – N/A

601 – EZ Black – 22,339

508 XL Black or Yellow – 24,573

901 – XLAC No Dye  –25,690

36x14x30

Rubber – N/A

601 – EZ Black – 26,565

508 XL Black or Yellow – 29,222

901 – XLAC No Dye  – 30,550

36x16x30

Rubber – N/A

601 – EZ Black – 30,738

508 XL Black or Yellow – 33,861

901 – XLAC No Dye  – 35,400

Add 5% to clean/smooth floors

** Calculations are general guidelines

** Based on application, Capacities can significantly decrease or increase

Assembly Options:

Mold-On

Where the elastomer is molded directly to the mountable hub, providing the quickest and easiest way to install. Hub cannot be reused once the tire wears out.

Press-Fit

Where the elastomer is molded to a press-on rim, which is then factory pressed onto a hub and sold as a single piece. This option has the benefit of quick and easy installation and allows for the hub to be reused when the tire wears out.

Tire Profile and Tread Style Options:

Smooth Crown (SC)

Pros - Best maneuverability and easiest steering

Cons - Lower stability and carrying capacity

Tapered Side Wall (TSW)

Pros - Best carrying capacity, with excellent stability, manuverability, and steering ease

Cons - No known limitations

Straight Side Wall (SSW)

Pros - Highest traction & stability from more ground contact. Typically used in Ultra-Large OD tires.

Cons - Reduced maneuverability and load capacity

Smooth Flat (SF)

Pros - Reinforcement band protects against undercutting caused from uneven loading or overloading

Cons - Slightly lower traction and stability

Tapered Side Wall (TSW)

Pros - Best carrying capacity, with excellent stability, manuverability, and steering ease

Cons - No known limitations

Center Groove (CG)

Allows for heat dissapation, reducing risk of meltdown in long runs applications.

Also available in double center-groove (2CG) & triple center-groove (3CG)

X-Groove (XG)

Reduces hydroplaning in standing water and improves traction on wet floors.

Also available in double X-Groove (2XG)

X-Groove with Center Groove (XG With CG)

Reduces hydroplaning, side slippage, and improves traction on wet floors.

Suitable for medium to high standing water.

Diagonal Groove (DG)

Highest water dissapation, the most effective for wet floor conditions.

Suitable for high standing water. Provides smoother ride than X-Groove.

SuperSiped™  (SS)

Ultra-fine diagonal cuts in the tread surface - best option for damp or icy floor conditions.

Can be combined with other grooving options.

DISCLAIMER: All "Tread Styles" that involve the cutting or the removal of surface material will weaken the tire and increase the likelihood of "chunking". Superior Tire & Rubber Corp. recommends avoiding the use of these types of tread styles unless to solve a specific problem in your application.
