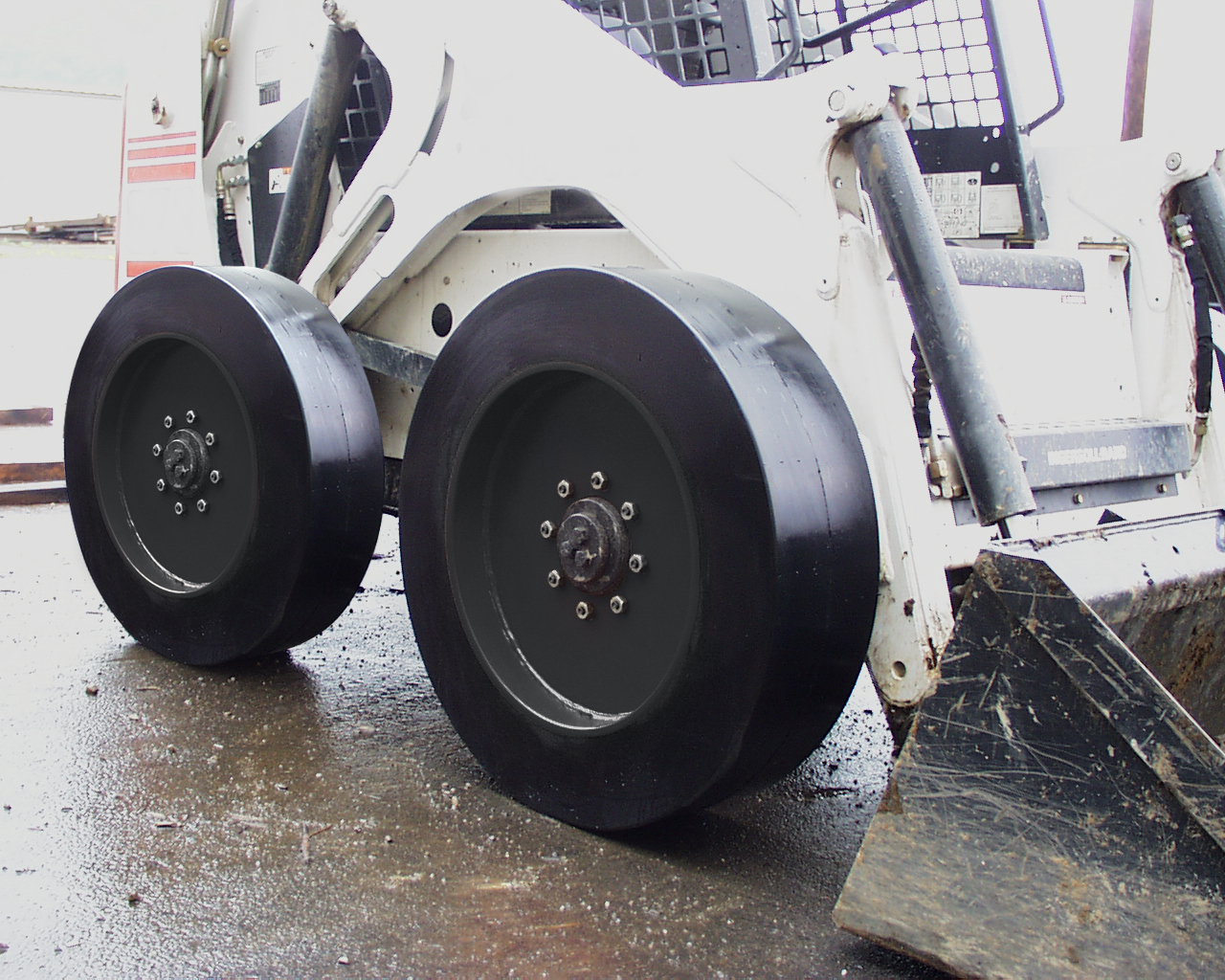

CUSHOMATIC™ SOLID Rubber Tires

  • The Original Flat-Proof Skid-Steer Tire - Solid rubber means it can't go flat, ever.
  • Softer Ride Without the Bounce of Pneumatic Tires - Less equipment wear and operator fatigue due to a larger footprint design.
  • Eliminates Rim Slippage and Reduces Assembly Cost & Downtime - from the integral one-piece tire and wheel design; no tire press required.
  • Increased Traction and Carrying Capacity - from the 100% premium tread compound, unlike other solid tires that use urethane foam and other fillers.



Download the Cushomatic­™  Skid Steer Literature

The CUSHOMATIC™ Solid skid-steer tires have a longer, more consistent work-life from the 100% premium tread compound with no fillers. The solution for when you're sick and tired of getting flat tires and don't want to pay for high-end "flat proof" tires with very little wear-life. The CUSHOMATIC™ tires have the cushion feel similar to pneumatic tires and will last, a very long time. The integral one-piece tire and wheel design eliminates rim slippage and reduces assembly cost & downtime.



The CUSHOMATIC™ tires are also a great option for indoor and outdoor use on internal combustion fork trucks!

CUSHOMATICSolid Tires vs Other Flat-Proof Tires:

In comparison with "other flat proof tires", the CUSHOMATIC™ is composed of 100% pure rubber, providing a softer ride, better durability, and unmatched service capacity.

Applications:



• Waste Transfer Stations

• Construction & Highway

• Recycling Plants

• Earth Removal, Mining, and Landscaping

• Scrap Yards

• Skid-Steer & Forklift Applications

• Steel, Lumber Mills, Forestry

• All weather applications

Vs. Process Friction

Pneumatic tire with a soft urethane foam fill.

Vs. Foam Filled

Pneumatic tire with a soft urethane foam fill.

Popular Skid-Steer Make and Model Cross Refrence:

7.50-16 / 31.5" x 7"

Equivalent Pneumatic Tire Size / CUSHOMATIC® Tire Size (OD x Width)

Models: S130 | S150 | S160 | S175 | S185 | S205 | 753 | 763 | 773

Models: 40XT | 410 | 420

Models: 216 | 226 | 228

Models: 240 | 258 | 317

Models: SK714-5 | Sk815-5, SK820-5

Models: Ls120 | LS125 | LS140 | LS150 | LS160 | LS170

8.25-15 / 33" x 8.5"

Equivalent Pneumatic Tire Size / CUSHOMATIC® Tire Size (OD x Width)

Models: 220 | 250 | 300 | 863 | 873 | 883

Models: 60XT | 70XT | 75XT | 85XT | 09XT | 95XT | 430 | 435 | 440 | 445 | 465 | 1825B

Models: 232 | 236 | 242 | 246 | 253 | 263 | 268

8.25-15 / 33" x 9" Extra Wide

Equivalent Pneumatic Tire Size /CUSHOMATIC® Tire Size (OD x Width)

Models: 2360 | 270 | 320 | 325

Models: SK1020-5 | SK1026-5

Models: LS120 | LS125 | LS140 | LS150 | LS160 | LS170

9.25-15 / 33" x 9"

Equivalent Pneumatic Tire Size / CUSHOMATIC® Tire Size (OD x Width)

Models: 963

Models: 95XT

Models: 280 | 328 | 332

Avaliable Tire Options:

Wheel-less Style

Same CUSHOMATIC™, but without the steel hub. Designed to replace a pneumatic tire in an existing pneumatic rim.

Pneumatic
Tire Equivalent:
4.00-8

Tire O.D. – 16

Tread Width– 4.0

Rim Width – 3.75

Rim Dia.– 8.0

Pneumatic
Tire Equivalent:
5.00-8

Tire O.D. – 18

Tread Width– 4.5

Rim Width – 4.00

Rim Dia.– 8.0

Pneumatic
Tire Equivalent:
6.00-9

Tire O.D. – 21

Tread Width– 6.0

Rim Width – 5.00

Rim Dia.– 9.0

Pneumatic
Tire Equivalent:
7.00-12

Tire O.D. – 26

Tread Width– 7.0

Rim Width – 5.00

Rim Dia.– 12.0

Pneumatic
Tire Equivalent:
7.50-10

Tire O.D. – 25

Tread Width– 7.0

Rim Width – 5.00

Rim Dia.– 10.0

Options:

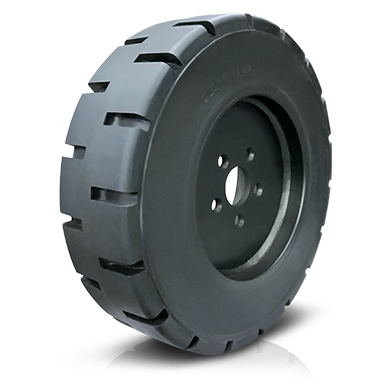

Lugged Tread

Provides a softer, more cushioned ride on rougher surfaces. Ideal solution for demolition sites, waste transfer, and other abusive applications where tire punctures are common. Wear-life is extremely long as the whole tire is solid tread rubber.

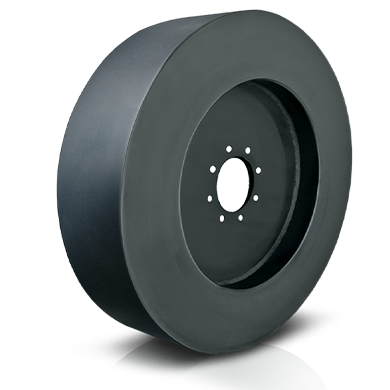

SmoothTread

Increases traction on smooth surfaces due to larger surface contact area - the best option for concrete, pavement work. Wear-life is extremely long as the whole tire is tread rubber.

Factory-Customized Bolt Pattern:

To provide the perfect installation, we offer both OEM bolt patterns and customized bolt patterns. In addition to size, the truck version or bolt pattern information is required to ensure the best fit.

Pilot Hole Diameter (P)

__________

Number of Bolt Holes

__________

Bolt Hole Diameter (D)

__________

Bolt Circle



     •  Even = c

__________

     • Odd = a + b

__________

Bolt Hole Chamber (Angle + Diameter)

__________

Mounting Plate Thickness (T)

__________

Mounting Plate Offset (+O/-O)

__________­­­
