CUSHOTHANE®
- High Performance 95A Compound - made from a high grade proprietary polyurethane that is equal to other competitors’ premium heavy load 95A compound.
- Longer Work-life - significantly higher abrasion and chunking resistance than the competitors standard compound, lower overall cost by reducing the number of wheels replaced and replacement labor paid during the life of the truck.
- Perfect Balance in Performance - designed to perform in a broad spectrum of usages with a perfect balance of dynamic properties, cut and tear resistance and abrasion resistance.
- Greater Reliability - that offers lower maintenance costs and minimal downtime.
The Cushothane® polyurethane load wheels, for reach trucks, order pickers, forklifts, and pallet jacks, are designed to exceed the load and general duty requirements while reducing cost. A perfect fit for Cushothane® load wheels are indoor, clean, dry floors, guide wheels, medium or short runs, manufacturing facilities, and big box stores. Available in dual and triple wheel assemblies and can be purchased pre-assembled to include pressed-in bearings, spacers & axles drop-in ready to save you time.
Engineered to Work Reliably Just About Anywhere:

A consistent pour creates a consistent compound. The original Cushothane® compound has been painstakingly perfected over 40 years to be the "Go-To" for 80% of fork truck applications. It cancarry heavier loads than competitors’ economy compounds but offers greater comfort level than most heavy load compounds. It also lasts longer than those competitor compounds, which helps reduce downtime and results in fewer replacement cycles.
* Tested under controlled laboratorial condition
Primary OEM and Part # | Dimensions | Superior Item # |
Crown® - 310000 | 3.25 x 6.5 | L009136 |

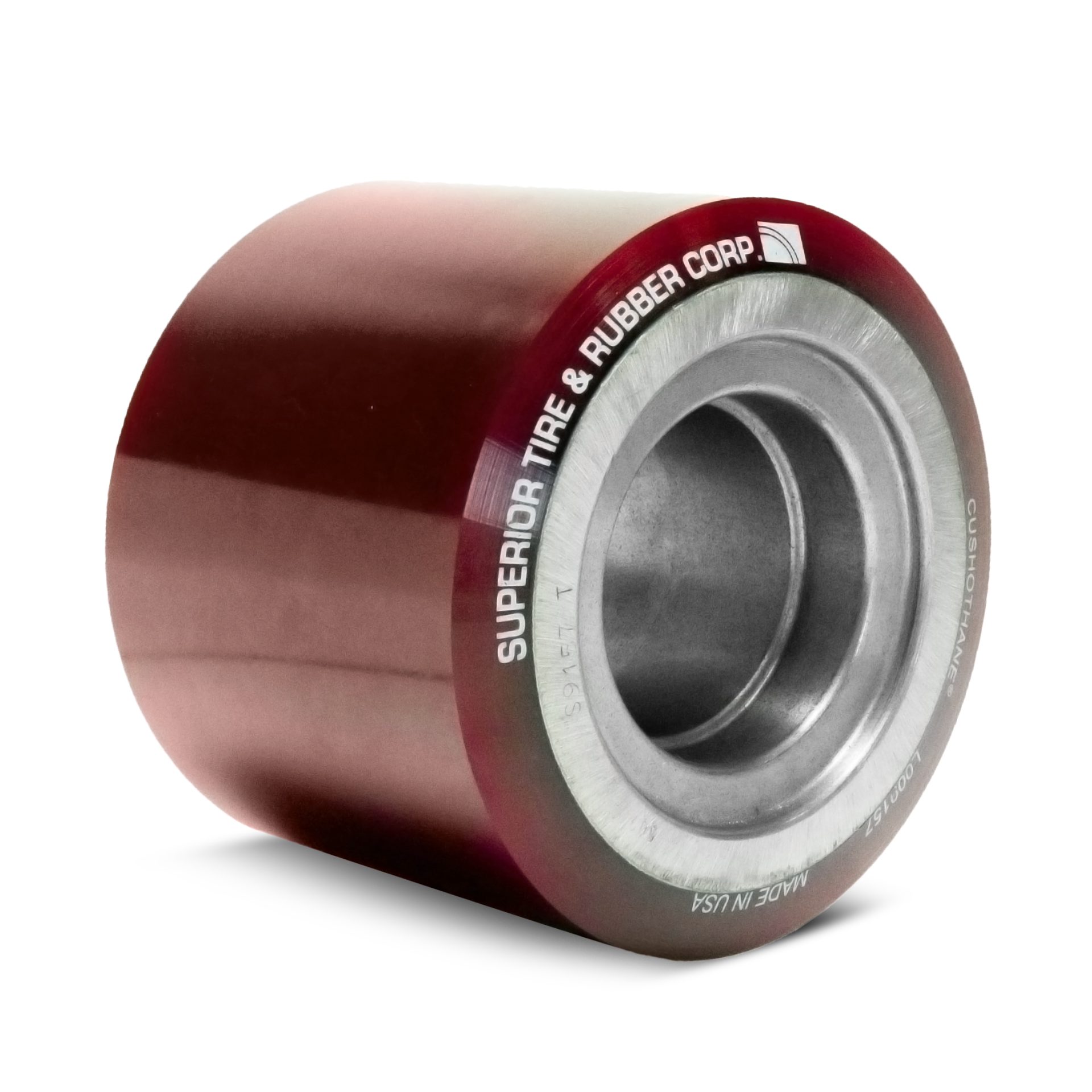

Crown® - 115033 | 5 x 4.125 | L009157 |
Primary OEM and Part # | Dimensions | Superior Item # |

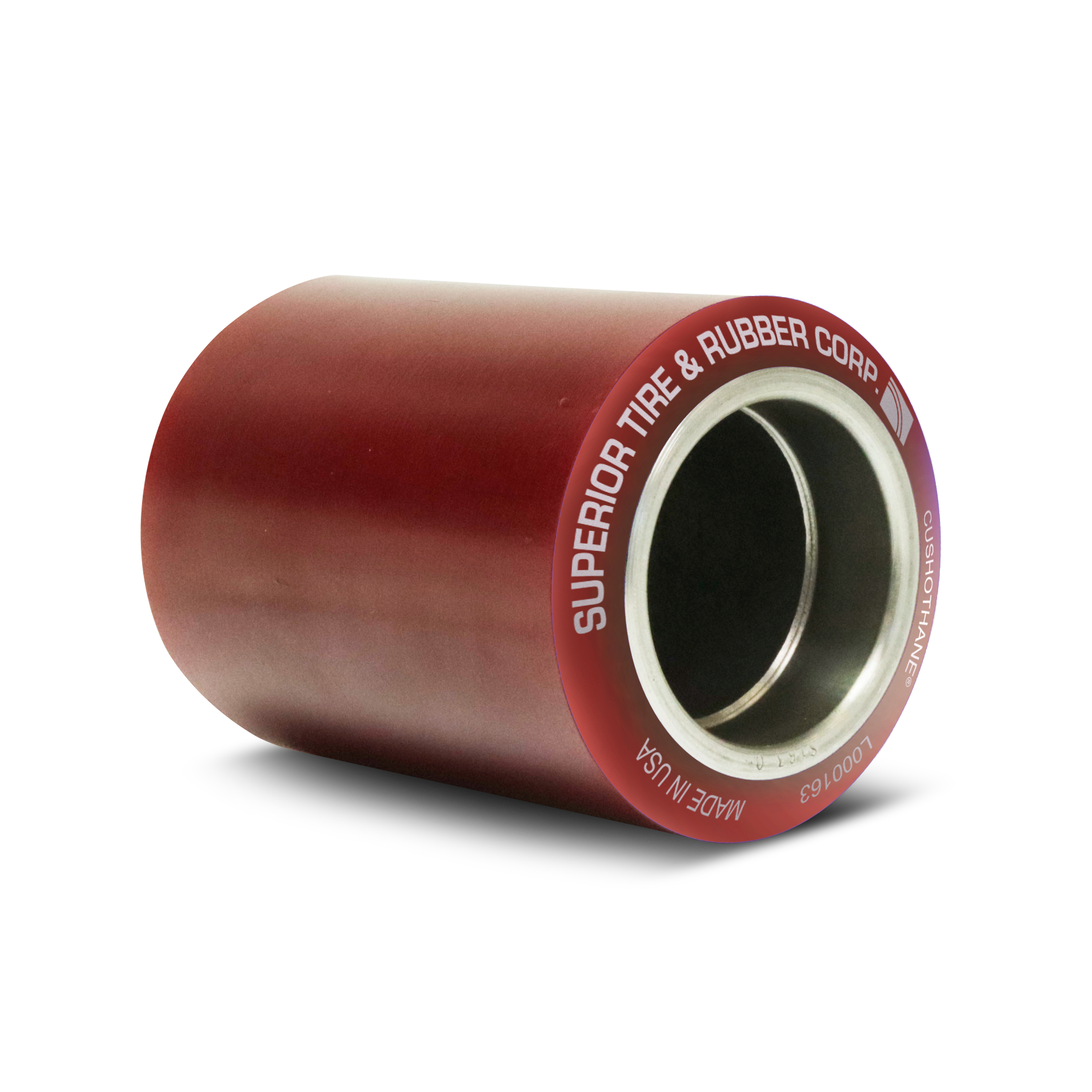

HYG® - 524148750 | 3.25 x 4.5 | L000163 |
HYG® - 652269601 | 3.25 x 4.5 | L000820R |
HYG® - 524140950 | 3.25 x 6.5 | L000879 |
Primary OEM and Part # | Dimensions | Superior Item # |
Raymond® - 671-041 | 3 x 3.5 | L009433 |
Raymond® - 632-069 | 3.25 x 5.937 | L000629 |

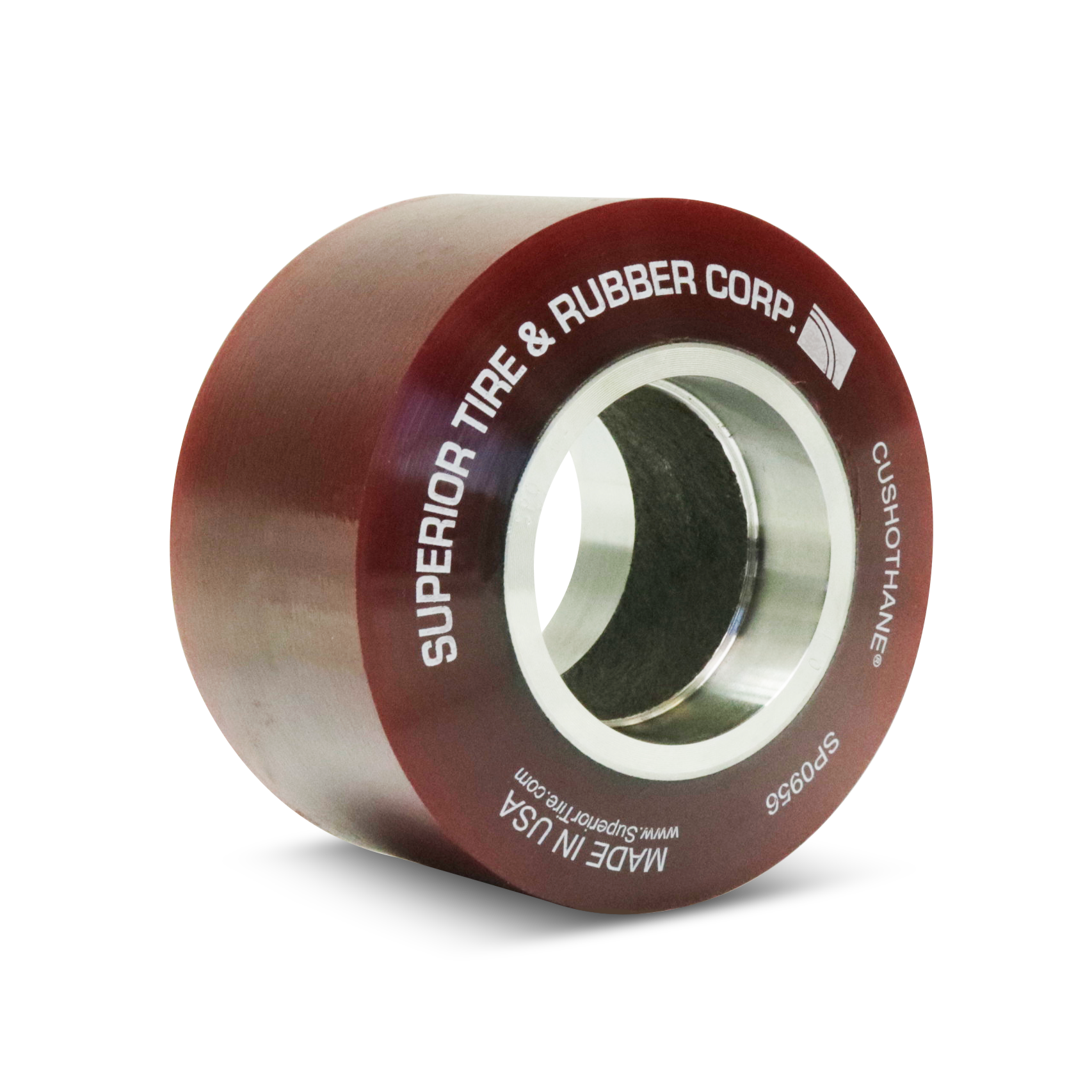

Raymond® - 1082406/06 | 4 x 2.5 | SP0956 |
Primary OEM and Part # | Dimensions | Superior Item # |
Toyota® - 00590-47623-71 | 3.25 x 4.5 | L002365 |
Assembly Options:
Dual and Triple Wheel Assemblies:
The optimal solution for pallet trucks that undergo frequent tight-turns typically found in single-direction style warehouse operations. During cornering, the outside of a wheel tries to rotate faster to compensate for a larger turning radius. As a result, this can lead to one side of the load wheel to scuff and abraid quicker, leading to a common failure known as "coning". Splitting the longer width load wheel into 2 or 3 pieces not only solves the rotation differences, but also reduces heat build up to prevent bond failure.
