CUSHOTHANE® EZ™

  • Smoothest ride and quickest run-out of any flat spot - for less vibration and reduced noise, minimizing machine and operator fatigue and increasing productivity.
  • Superior traction in all conditions - unmatched performance in wet and cold conditions.
  • Excellent energy savings - very low rolling resistance minimizes battery drainage in cold storage applications and provides longest operating time possible.
  • Highest Chunk resistance - especially at low temperature from a specialized polyurethane compound.



                                   Got Questions?

                               1.800.289.1456 x300

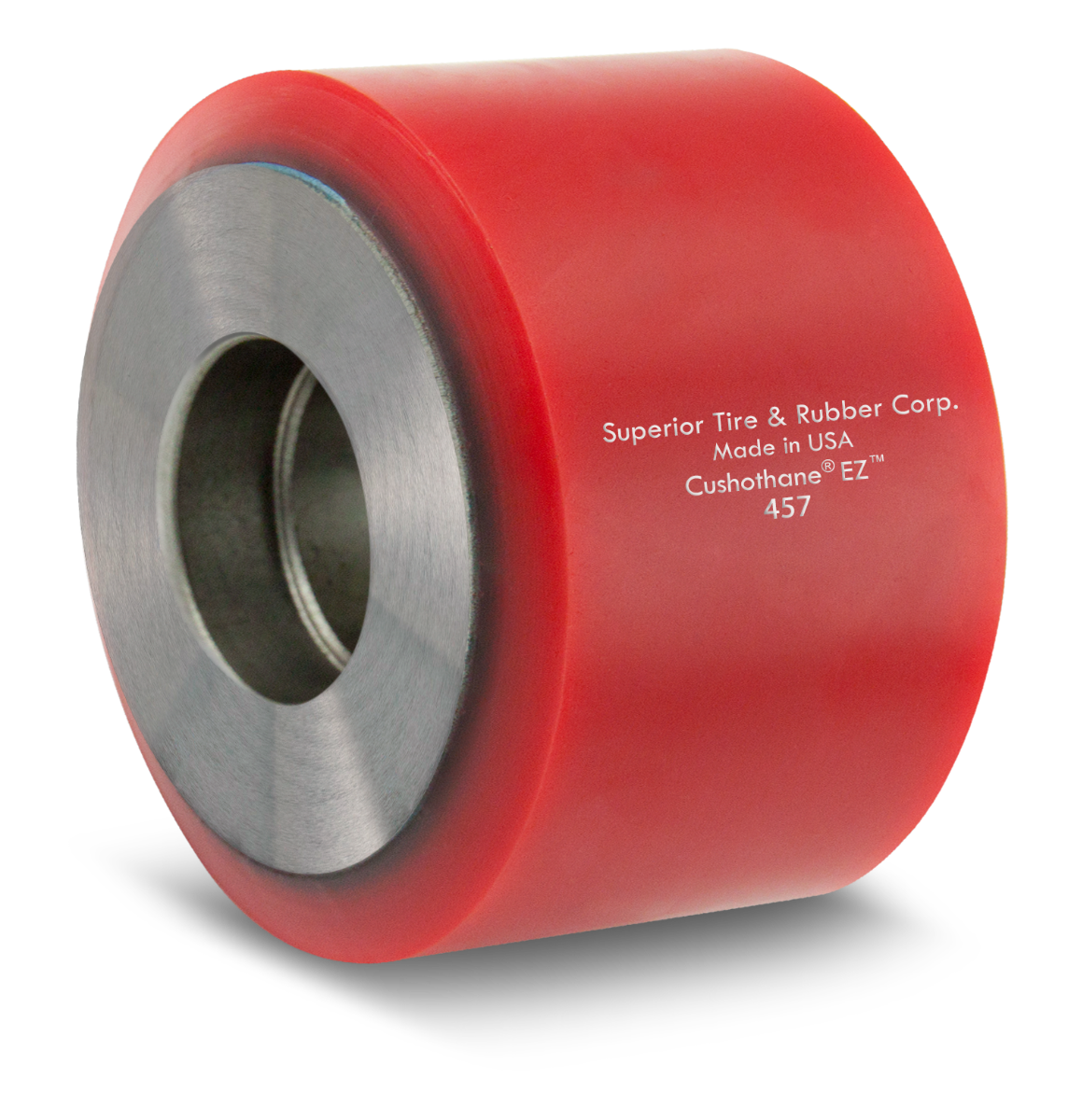

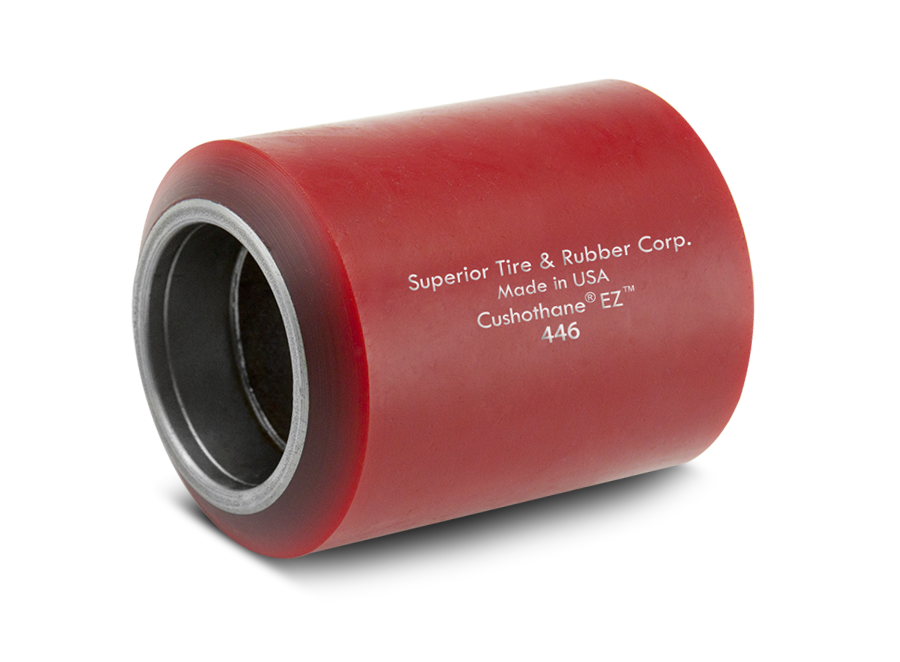

The Cushothane® EZ™ polyurethane load wheels for indoor forklifts and pallet jacks offer the highest traction in cold or wet floors, providing grip even on slippery floors.  Cushothane® EZ™ holds its softness and flexibility beyond the normal cold storage/freezer temperature range. The competitor’s harder compound and different chemistry quickly become harder and more brittle in regular cold storage/freezer temperatures, causing a harder ride, loss of traction, and chunking. We engineered the Cushothane® EZ™ to maintain high cut & tear resistance at low temperatures. Available in dual and triple wheel assemblies and can be purchased pre-assembled to include pressed-in bearings, spacers & axles  drop-in ready to save you time.

Consistently Soft with High Chunk Resistance:

  • Cushothane®EZ™ holds it’s softness and flexibility beyond normal cold storage/freezer temperature range.
  • The competitor’s harder compound and different chemistry quickly becomes harder and more brittle in normal cold storage/freezer temperatures, causing a harder ride, loss of traction and chunking.

  • Cushothane® EZ™ is a high performance MDI Ester, which has very high cut & tear resistance. Many competitors use a common TDE Ether with modified cure times to achieve a softer compound but sacrifice cut & tear properties.
  • Moreover, the Cushothane® EZ™ was engineered to maintain high cut & tear resistance at low temperatures.

Primary OEM and Part #

Dimensions | Superior Item #

Raymond® - 939-12745d

5 x 3.625 | L300654

Primary OEM and Part #

Dimensions | Superior Item #

Crown® - 100462

3.25 x 6.5 | L309141

Crown® - 83179

4 x 2.5 | L309143

Crown® - 115033

5 x 4.125| L309157

Assembly Options:

Dual and Triple Wheel Assemblies:

The optimal solution for pallet trucks that undergo frequent tight-turns typically found in single-direction style warehouse operations.  During cornering, the outside of a wheel tries to rotate faster to compensate for a larger turning radius. As a result, this can lead to one side of the load wheel to scuff and abraid quicker, leading to a common failure known as "coning". Splitting the longer width load wheel into 2 or 3 pieces not only solves the rotation differences, but also reduces heat build up to prevent bond failure.

Pre-Pressed Bearings, Spacers, and Axles:

All of our polyurethane load wheels can be purchased pre-assembled to include pressed in bearings, spacers & axles - drop in ready to save you time. We also offer the individual assembly components that can be pruchased separately. For more information on these components, visit our "Bearings & Fasteners" page.

Site Proven, Customer Preferred

“When an end-user has an application where they want a soft ride, need traction, and have had problems with tires chunking off, I always endorse Superior Tire & Rubber Corp’s Cushothane® EZ™ compound as the best tool for the job. I've even promoted it’s ability to other dealers.”

-Richard Ceccacci, VP - Ceccacci Lift Truck Service

“Recently, a competitor’s tire was flat spotting for us and offered very short and unsatisfactory work life. Superior Tire & Rubber Corp’s Cushothane® EZ™ Smooth Crown tire, siped for traction, eliminated the flat-spotting, giving us truly the longest ride and greatest value.

-Bob Bartolomeo, Maintenance Supervisor - SYSCO Foods Services
